Cordless Dot Peen Marking Machine

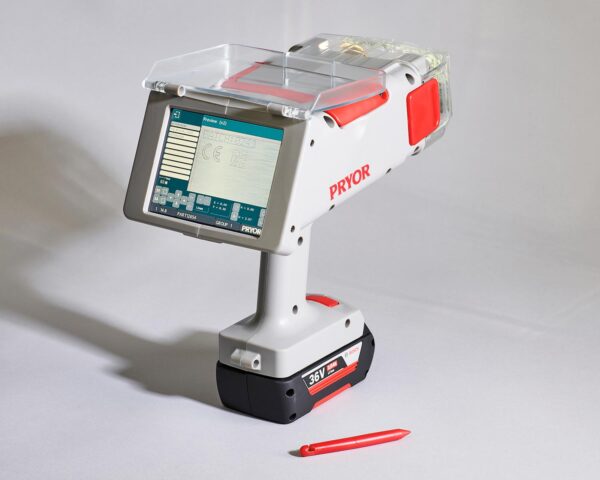

Pryor PortaDot 60-30 Touch — PD Series
This fully cordless, battery-powered dot peen marking machine features an integrated touchscreen controller to maximize portability in the shop or on the job site. It is a highly versatile, lightweight, yet rugged marker that provides fast, convenient marking of a wide variety of parts across multiple locations.
Mark large tubes, frames, and profiles directly at the workpiece, or mount it on a column and base for precise marking of smaller parts.
A battery-powered dot peen marker for the ultimate in portability.
- Reliable Performance
- Great for permanently marking text, logos, 2D barcodes, and more on most metals up to 62 HRC. 2.36" x 1.18" (60 x 30mm) marking window.
- Fully Self-Contained
- Forget bulky controllers and complicated software. Run your marker directly from the integrated 5.4" full-color touchscreen, with an intuitive user interface that will have your team up and running in minutes. Create, edit, and save marking programs directly on the machine. All marking data is backed up to internal storage, with the option to export via USB.
- High-Performance Battery
- 36V battery supports “all-day” use and features patented technology to ensure the marking force does not deteriorate as the battery power depletes.
- "Combo" Mode Versatility
- Quickly mount on our optional column and base for precision benchtop marking of smaller machined parts and data plates.
- Adapts to Your Workpiece
- Adjustable face mask with horizontal and vertical "V" grooves for tube/pipe marking.
- Integrated LED Lighting with Tilt Activation
- Ensure accurate mark placement while working in dark or difficult-to-reach areas.
Pryor PortaDot 60-30 Touch Specifications
Model:
Marking Window:
Marking Technology:
Marking Depth:
Drive Mechanism:
Power Supply:
Material Types:
Material Hardness (Max.):
Marking Machine Weight (incl. Battery):
Control Device:
Memory Capacity:
Connectivity Options:
Marking Types:
Marking Data:
Marking Fonts:
Character Sizes:
Warranty:
PD6030
2.36" x 1.18" (60 x 30mm)
Electric solenoid
Material dependent
XY precision lead screws
36V rechargeable swappable battery
Metal/alloys (steel, aluminum, copper, etc.), plastic (PVC, acrylic, etc.), glass
62 HRC
8.2 lbs. (3.7 kg)
Integrated touchscreen controller
Up to 9000 marking layouts
USB A (USB Flash drive, USB Keyboard), USB B (PC USB-Com Connectivity), WiFi 802.11/b/g/d/h/i/n 2.4GHz (Wireless scanners, data logging, network interfacing)
Straight, angled, radial
Capable of marking 2D Data Matrix, QR codes, HPGL, BMP logos, serial numbers, shift codes, and more
5 x 7, 7 x 9, Varidot
0.19 to 59.9mm in increments of 0.19mm (5x7 font) or 0.25mm (7x9 font)
1 year
Standard Offering Includes:
- Self-contained cordless marking machine with integrated touchscreen controller
- One 36V battery (swappable)
- High-speed battery charger
- Touchscreen protector
- Stylus
- Heavy-duty carrying case
Accessories & Replacement Parts
Stylus & Nosepiece
- Stylus Spring (Universal)
- PF06025
For 0.50” Nosepiece
- 0.50” Nosepiece
- PD03910
- 90°, 0.157” Stylus
- PC03120-P
- 0.005” tip radius
- 5 pack
- For use with 0.50” Nosepiece
- 120°, 0.157” Stylus
- PC03200-P
- 0.005” tip radius
- 5 pack
- For use with 0.50” Nosepiece
- 120°, 0.157” Stylus
- PC03220
- 0.010” tip radius
- For use with 0.50” Nosepiece
Column & Base Mount
- Column & Base Mount
- PB6030CB
- Allows the 60-30 to be mounted securely and used as a benchtop marking station for smaller parts, data plates, etc. Quick no-tools changeover between handheld and mounted configurations.
Workholding
- Magnetic Chuck
- PB02207-P
- Manual on/off with holding surface of 7” x 4”
- Tag Marking Fixture
- PB03210-P
- Uses 2 Magnets to hold tags or other small pieces
- Maximum part size: 7” x 4.5” x 0.100”
Banding Fixtures:
- Single Band Fixture (1/2” and 5/8”)
- PH03415-P
- 4 Band Fixture (1/2”)
- PH03420-P
- 4 Band Fixture (5/8”)
- PH03435-P
Note: Fixtures are for use with the mounting column and base.
